Linksys PAP2T Phone Adapter - Device Configuration Guides

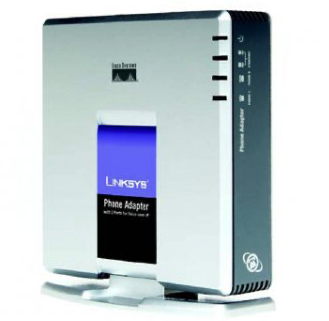

The Linksys PAP2 is a reliable inexpensive telephone adapter that works with the VirtualGlobalPhone service when placed behind your broadband internet router.

STEP 1

You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and

dial:   **** (four asterisks)
then dial:  110 #

and you will be told the IP address of your device (e.g. 192.168.0.100).

STEP 2

Go to any browser equipped computer on your network and enter the address:

http://<IP ADDRESS>/

(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1.

STEP 3

Click on the "Admin Login" button near the top right side of the screen, then click on the "Line 1" tab.



STEP 4

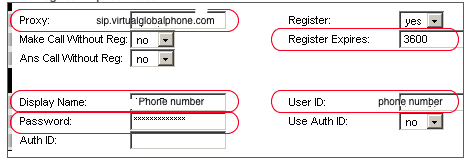

You need to modify only a few parameters from the factory default. They are listed here:



Proxy:   sip.virtualglobalphone.com
Display Name:   Your VirtualGlobalPhone number
User ID:   Your VirtualGlobalPhone number or the SIP user name
Password:   Enter the password thats already shared to your email.
Register Expires:   3600

STEP 5

To save bandwidth, you can change Line 1 "Preferred Codec" to G729a. Also change the "Use Pref Codec Only" to No. You can only do this for one line. So, if Line 1 is on G.729a, Line 2 has to be some other codecs.

STEP 6

Click on the "Save Settings " button at the bottom of the form.
